High Definition (HDI) 16/32 Indicators
Our new range of high definition small and compact indicators are available to complement the two and three-digit Indicators. As a single segment, the HDI 16 is available for single character
display, whilst the double segment indicator of the HDI 32 is best suited for double-digit and scrolling messages.
SKU
HDI 16/32 Indicators

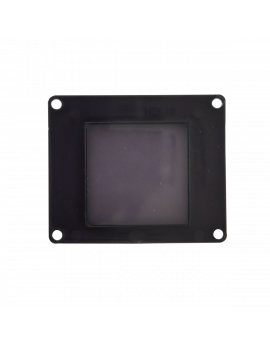

HDI 16 Features Advantages
- 16 x 16 dot matrix display
- High-density monochrome display (only available in red)
- High definition character font
- 40mm high characters
- Small unit size 40mm x 40mm display area
- CAN high speed communication network
- Up to 15 floors
- Single character display plus direction arrows
- Large hall lantern arrow
- Dual tone arrival gong
- Slimline 14mm deep
- Horizontal scrolling messages
- Vertical directional scrolling lift position
- Interfaces directly to the Lester Controls’ range of lift controllers
HDI 32 Features / Advantages
- 16 x 32 dot matrix display
- High-density monochrome display (only available in red)
- High definition character font
- 40mm high characters
- Small unit size 40mm x 80mm display area
- CAN high speed communication network
- Up to 31 floors
- Two character display plus direction arrows
- Large hall lantern arrow
- Dual tone arrival gong
- Slimline 14mm deep
- Horizontal scrolling messages
- Vertical directional scrolling lift position
- Available in vertical and horizontal orientations
- Interfaces directly to the Lester Controls’ range of lift controllers
