The new contactorless ZA 4CS drive is used on all types of installations whether it be for synchronous or asynchronous motors.
The easy-to-use keypad and compatibility with all ZA motors make for an easy solution on many installations. The recently introduced ZA REC unit makes the combination a perfect match for any regenerative installations. Like the HPV900 S2, direct-to-floor approach using serial communications is standard when used in conjuction with a CEDES or USP Shaft Positioning System.
In order to retrieve a quote for this controller please follow one of the options below:
Details
- Wall mounting in the machine room or elevator shaft

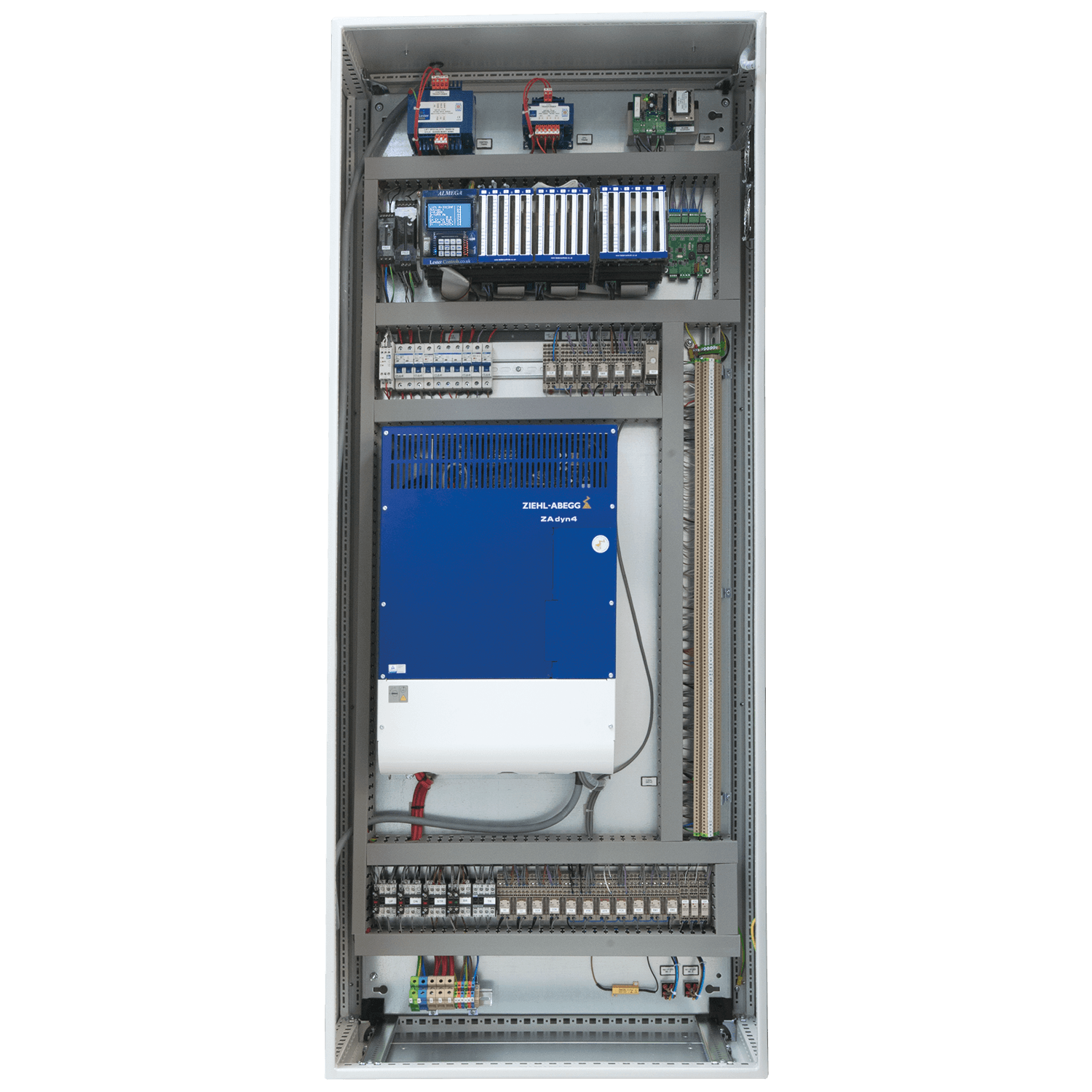

- Mounting in the switch cabinet
- Line choke, radio interference filter integrated
- Space-saving installation due to compact design
- Operation of synchronous motors (ZETADYN 4CS) and asynchronous motors (ZETADYN 4CA)
- Open-loop operation of asynchronous motors
- Standby function
- 4-line display with clear text display
- Minimal noise generation and low energy
consumption through controlled ventilation - Automatic travel curve pre-assignment
- Switching frequency: 4 to16 kHz (automatic adaptation)
- EN 12015 and EN 12016
- Protection class: IP20
Controller
- Programmable inputs and outputs
- 5 x relay outputs (potential-free)
- 12 x digital inputs (24 VDC)
- DCP
- CANopen-Lift
- All interfaces galvanic isolated
Encoder
- Incremental encoder
- HTL / TTL / Sinus
- Absolute encoder
- EnDat / SSI / ERN 1387 / Codeface /Hyperface
- Encoder simulation for controller
Monitoring
- Temperature monitoring brake resistor
- Temperature monitoring motor (in accordance with EN 61800-5-1:2008-04)
- Motor contactor monitoring (with optional use of motor contactors)
- Brake release monitoring in accordance with EN 81-43
- The ZAdyn4C comes factory equipped with all interfaces
