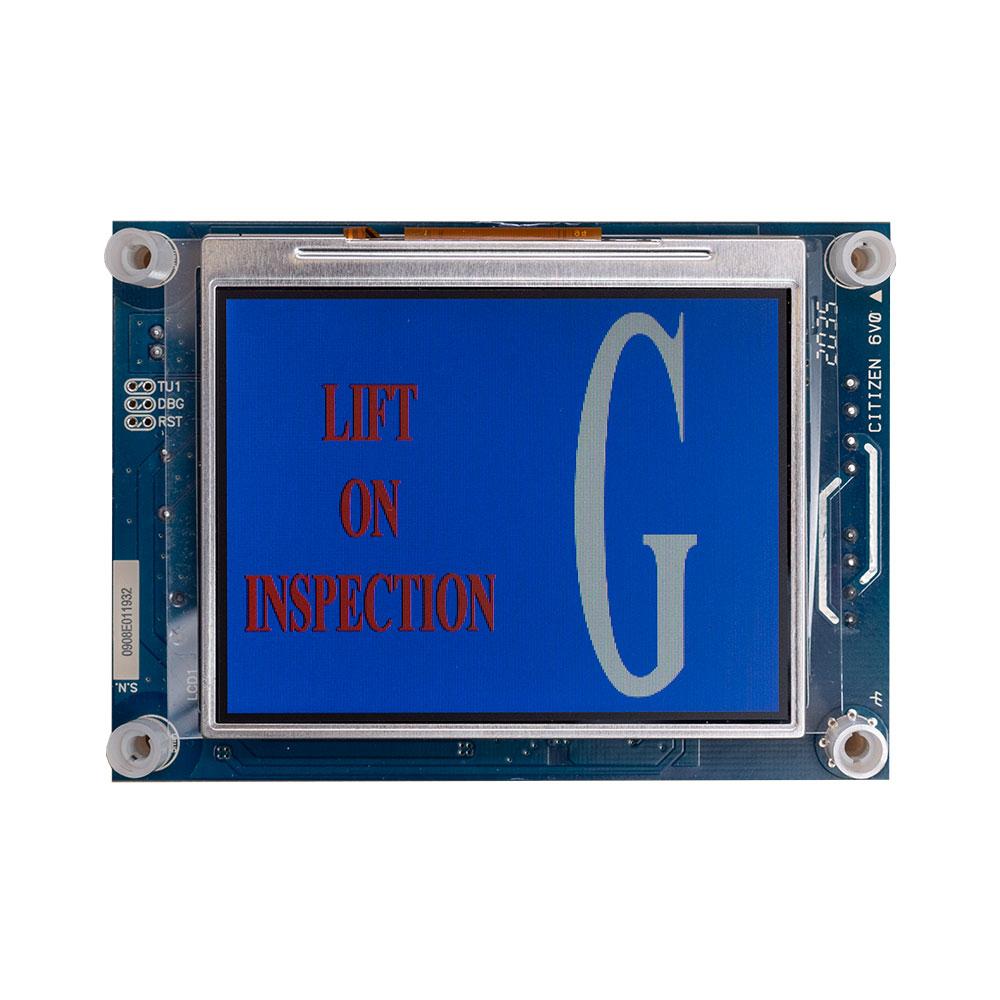

Serial TFT (LCD) 3.5 inch Indicator
Serial TFT (LCD) 3.5 inch Indicator
Serial TFT (LCD) 3.5 inch Indicator
The TFT35 is our smallest TFT indicator. Its bright 256-colour display has a 64K colour depth and an improved viewing angle can be suppled in either vertical or horizontal modes.
The TFT35 features include multi-tone arrival gong, non-scrolling directional arrows and large hall lantern arrow. It can also be customised on request and allows for on-site programming.
- On-site programmable
- 256 Colours
- High Resolution
- Slim Construction
In order to retrieve a quote for this controller please follow one of the options below:
Details
- Up to 31 floors
- 4 Wire Connection
- Viewing angles
- Left Angle (9 o’clock) 70 Degrees
- Right Angle (3 o’clock) 70 Degrees
- Upper Angle (12 o’clock) 50 Degrees
- Lower Angle (6 o’clock) 70 degrees - Vertical or horizontal mode changeable via an on board Dip switch (no need for reprogramming)
- 3D Non-Scrolling Direction Arrows
- Large Hall Lantern Arrow
- Multi-Tone Arrival Gong
- 256 Colours / 64K Colour Depth / 8 bits per pixel
- Standard White Font on Blue Background
- Customised Fonts, Font Colour, and Background Colour on request
- Standard font - Times New Roman
- Font height horizontal mode – 50mm
- Font height vertical mode – 50mm
- On Site Programmable
- 4mm x 3mm x 15mm Studs
- Adjustable Gong Output 8ohms up to 0.5w
- Active viewing area 72.00 x 52.00mm
- Resolution – 320*240
- 4 x Eco modes with variable times that are changeable on site via the Almega II
- Not enabled – full brightness continuous
- Normal to low – full brightness to 30% brightness
- Normal to off – full brightness to screen off
- Normal to low to off – Full brightness to 30% brightness to screen off - Up to 31 standard messages
- Compliant to EN 81-28 / EN 81-70 / EN 81-73
