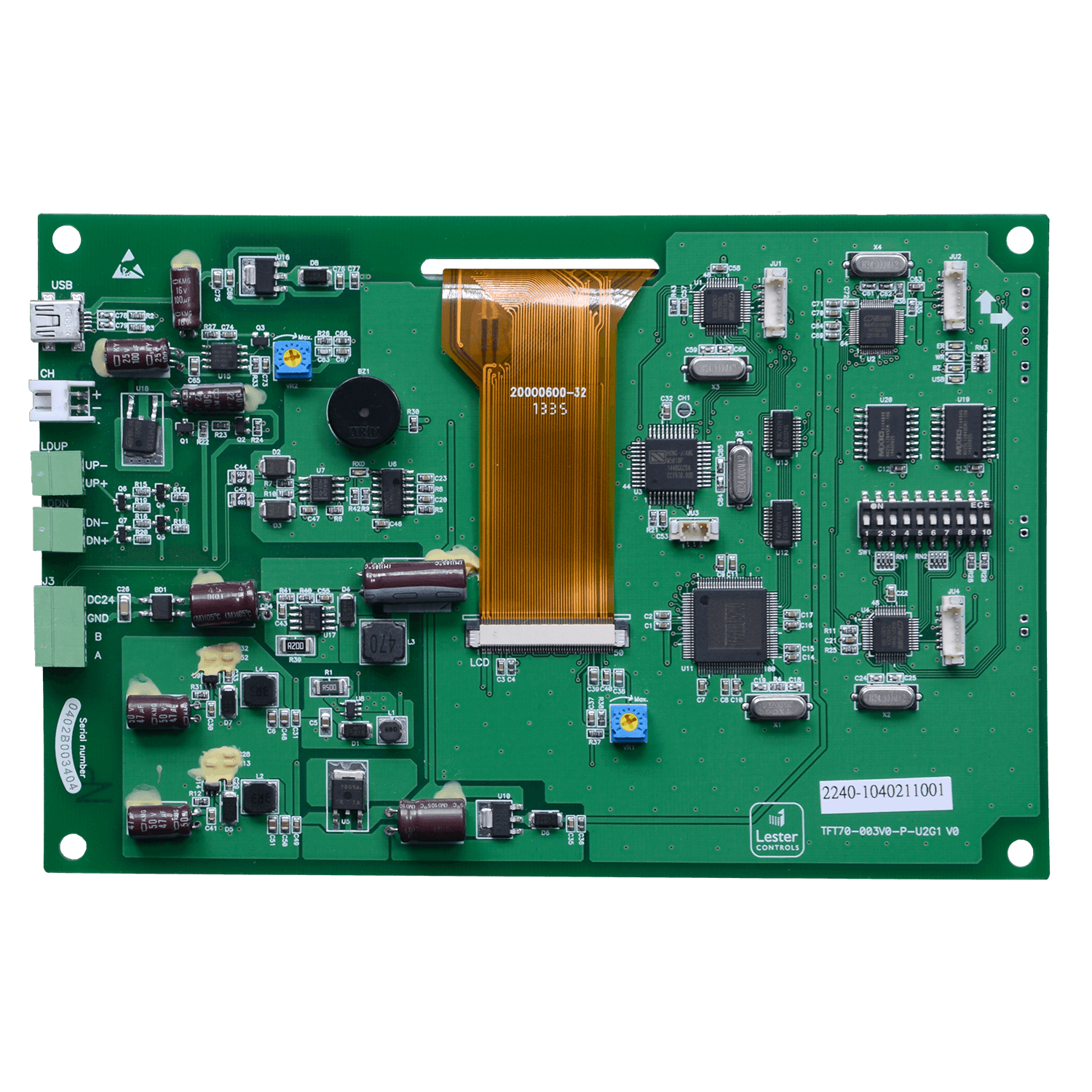

Non Serial TFT (LCD) 7 Inch Indicator

The new TFT70 indicator supersedes the TFT90 model as our largest, most up-to-date full colour TFT indicator. New features include further customisation and image options and the facility for on-site programming.

The new TFT70 offers a large 154mm x 86mm 256 colour TFT display, with the option to include corporate logos and customised fonts and colours. On-site programmable from a tablet, laptop or PC. Features include energy saving mode, scrolling directional arrows and multi-tone arrival gong. With an improved degree viewing angle, the indicator can be positioned in vertical or horizontal mode.

On-site programmable
256 Colours
High Resolution
Slim Construction

In order to retrieve a quote for this controller please follow one of the options below:

QUOTE BUILDER CONTACT US PRICE ON APPLICATION

Details

Up to 31 floors
4 Wire Connection
Viewing angles
- Left Angle (9 o’clock) 70 Degrees
- Right Angle (3 o’clock) 70 Degrees
- Upper Angle (12 o’clock) 50 Degrees
- Lower Angle (6 o’clock) 70 degrees
Vertical or horizontal mode changeable via an on board Dip switch (no need for reprogramming)
3D Scrolling Direction Arrows
Large Hall Lantern Arrow
Multi-Tone Arrival Gong
256 Colours / 64K Colour Depth / 8 bits per pixel
Standard White Font on Blue Background
Customised Fonts, Font Colour, and Background Colour on request
Standard font - Times New Roman
Font height horizontal mode – 78mm
Font height vertical mode – 71mm
On Site Programmable
4mm x 3mm x 15mm studs
Adjustable Gong Output 8ohms up to 0.5w
Active viewing area 154 x 86.00mm
Resolution – 800*480
4 x Eco modes with variable times that are changeable on site via the Almega II
- Not enabled – full brightness continuous
- Normal to low – full brightness to 30% brightness
- Normal to off – full brightness to screen off
- Normal to low to off – Full brightness to 30% brightness to screen off
Up to 22 standard messages
Compliant to EN 81-28 / EN 81-70 / EN 81-73
Corporate Logos viewable in Jpeg format
