The Lester APS (CEDES) incorporates the latest revolutionary technology in absolute shaft positioning, with impressive benefits including high resistance to smoke and dust.

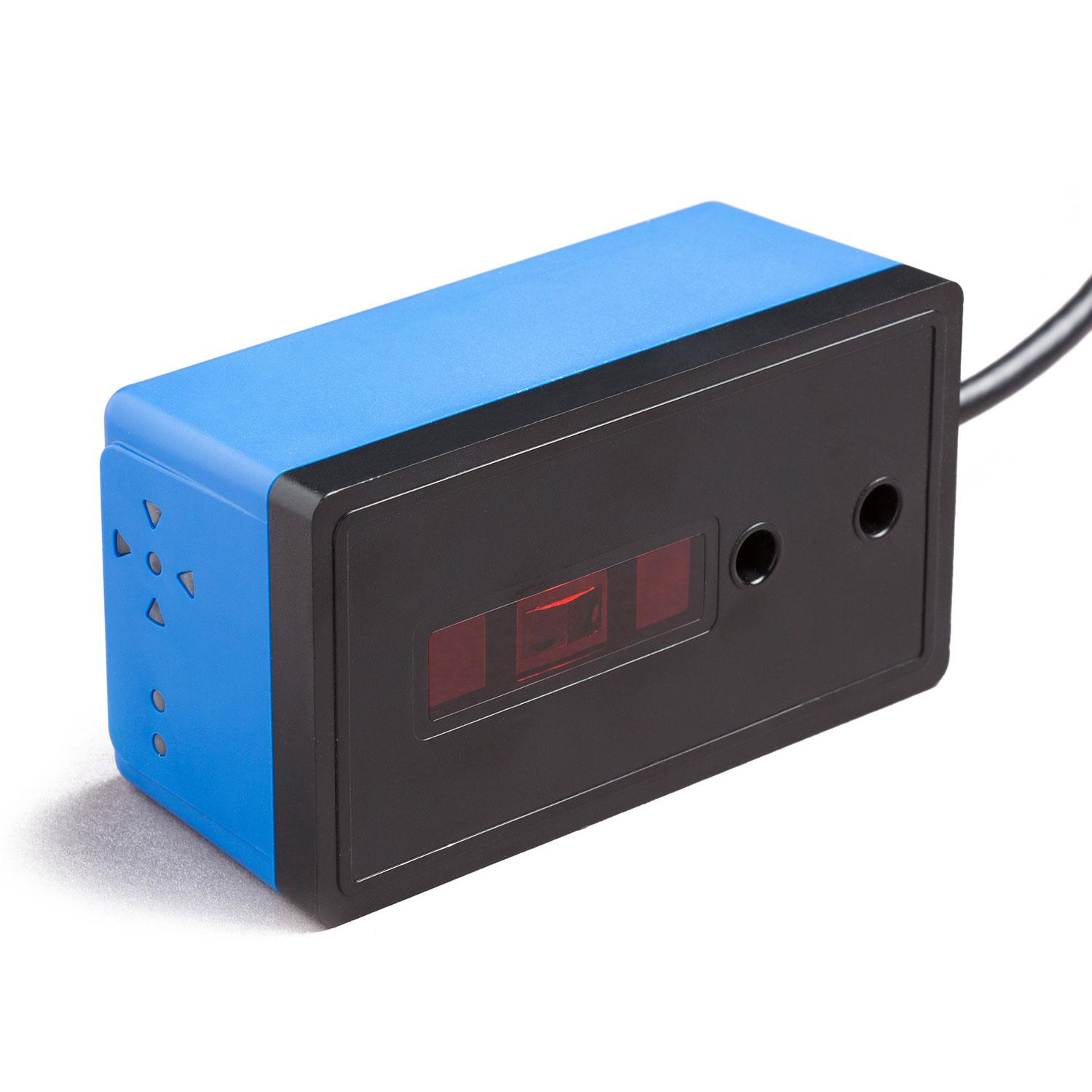

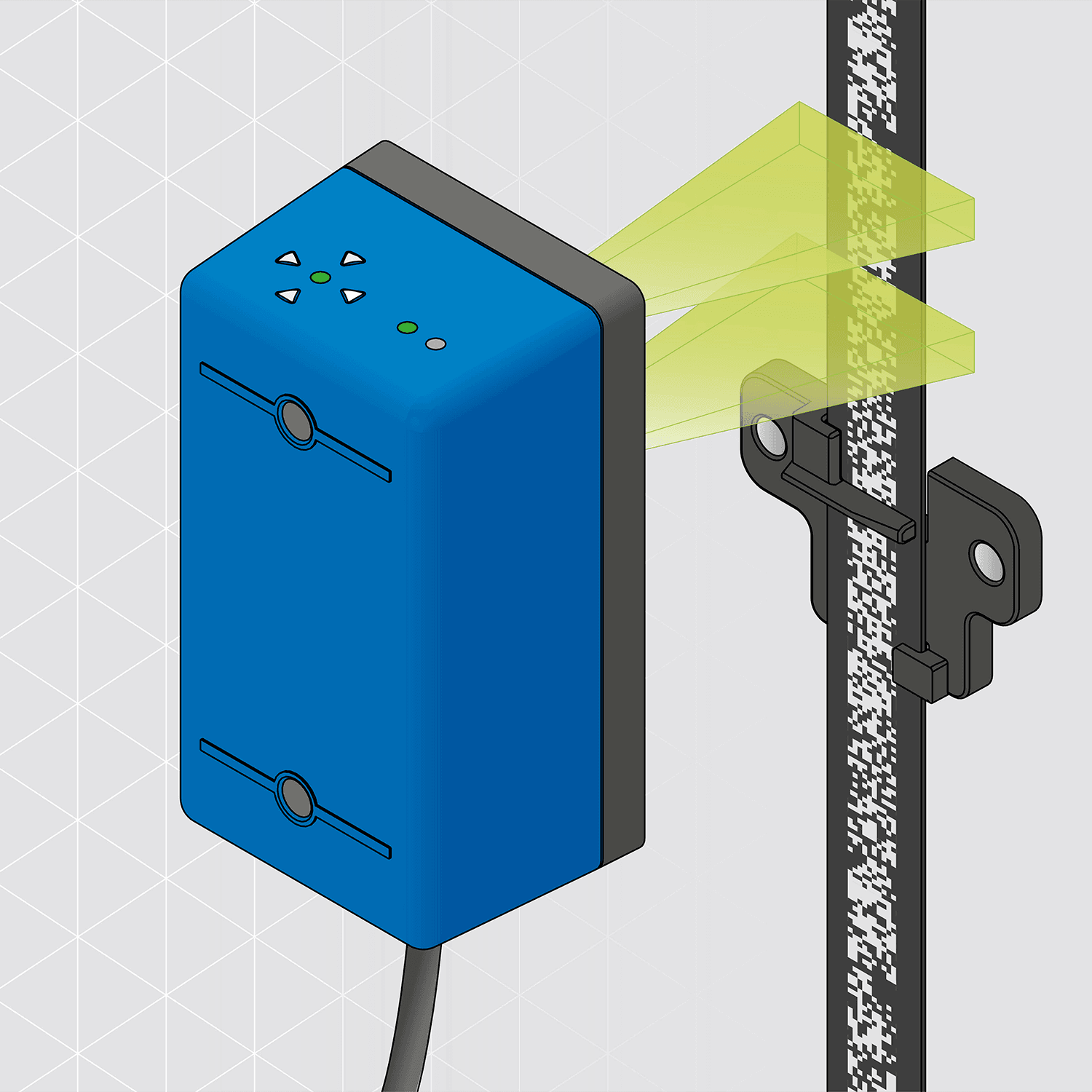

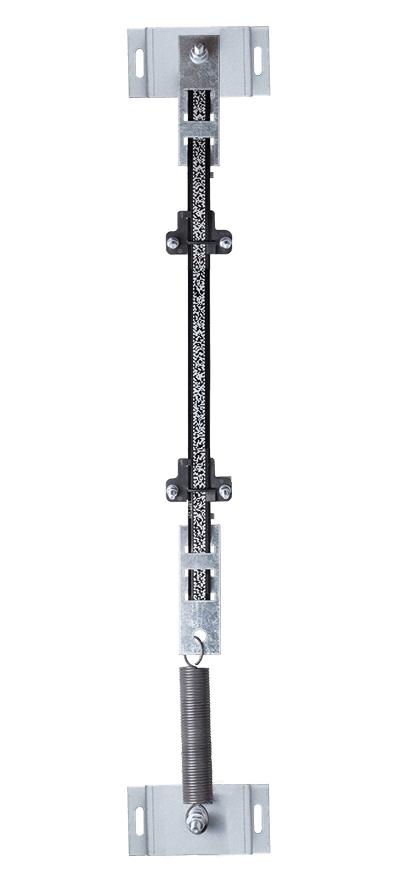

Manufactured in Switzerland and sold exclusively in the UK by Lester Controls, the Lester APS (CEDES) is the latest high-tech, ultra-reliable APS for lifts, providing a cost-effective positioning system. Designed for low to high rise applications, the Lester APS (CEDES) is set to revolutionise shaft positioning. Lester APS (CEDES) takes advantage of advanced optical sensor infrared technology. The heart of the system is the pair of IR cameras, housed in the robust sensor case which is fixed to the lift car in one of three positions. The APS sensor is completely non-contact; position and speed is calculated by reading the unique APS code tape fixed to the shaft wall – well away from car top visitors.
After extensive R&D co-operation and testing, the Lester APS (CEDES) is available for all new Lester ALMEGA II Lift Controllers or as an upgrade kit for existing ALMEGA installations.
A full installation fixing kit with instructions is supplied, along with Lester Controls’ “How-to guide” set-up and adjustment procedure.
In order to retrieve a quote for this controller please follow one of the options below:
Details
DUAL CAMERA TWIN CAN

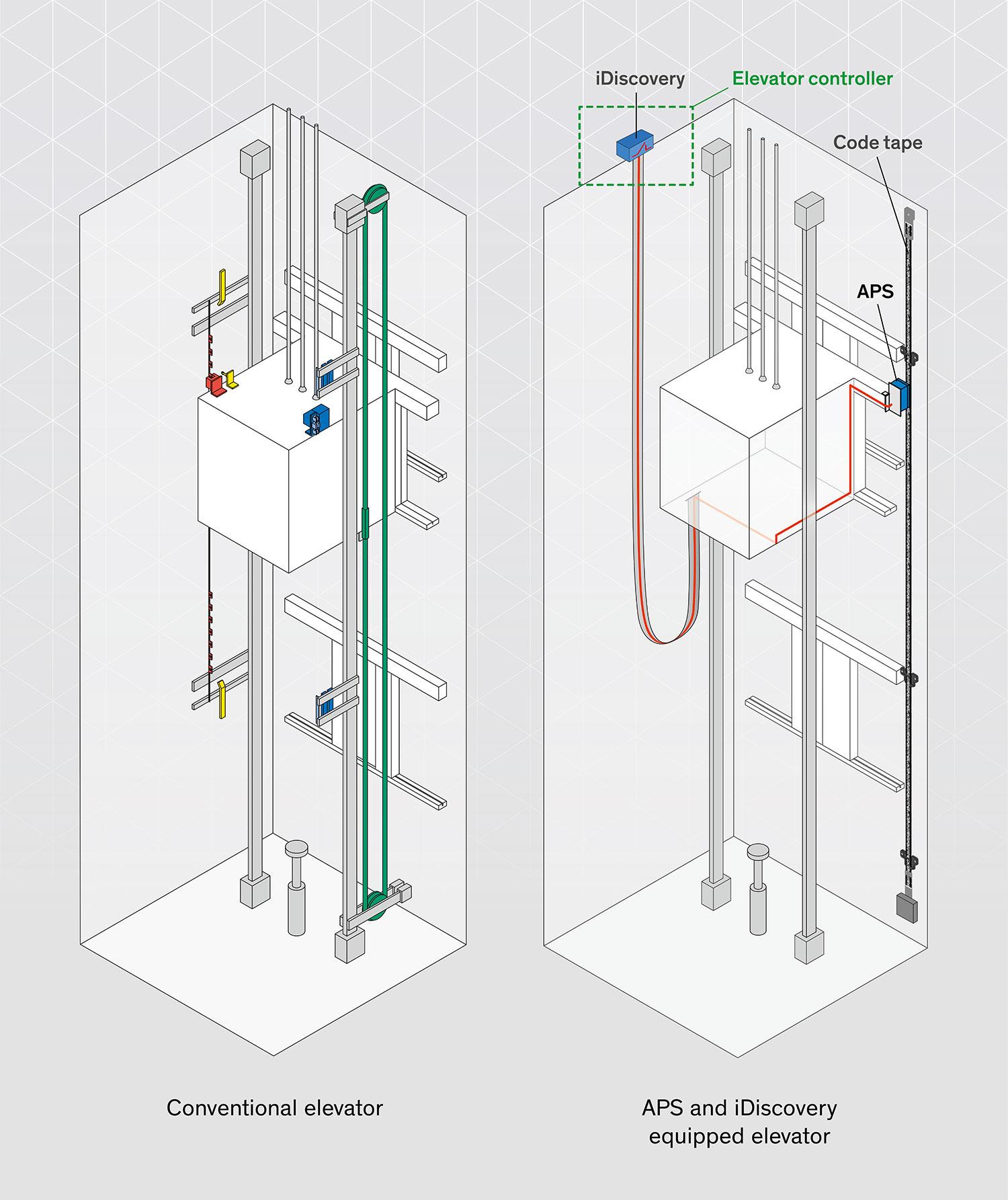

Lester Controls have utilised the Cedes APS dual camera/twin CAN facility and applied this to provide a position control system with inbuilt “redundancy”. This system means that there is no need to install terminal floor slowing/reset limits, even on elevators at 5m/s.
The two Cedes APS CAN outputs are connected to two separate CAN inputs on the Almega II processor (car CAN and position CAN).
The position CAN is used for Direct-to-Floor (DTF) Operation whereas the car CAN is used for the slowdown check.
