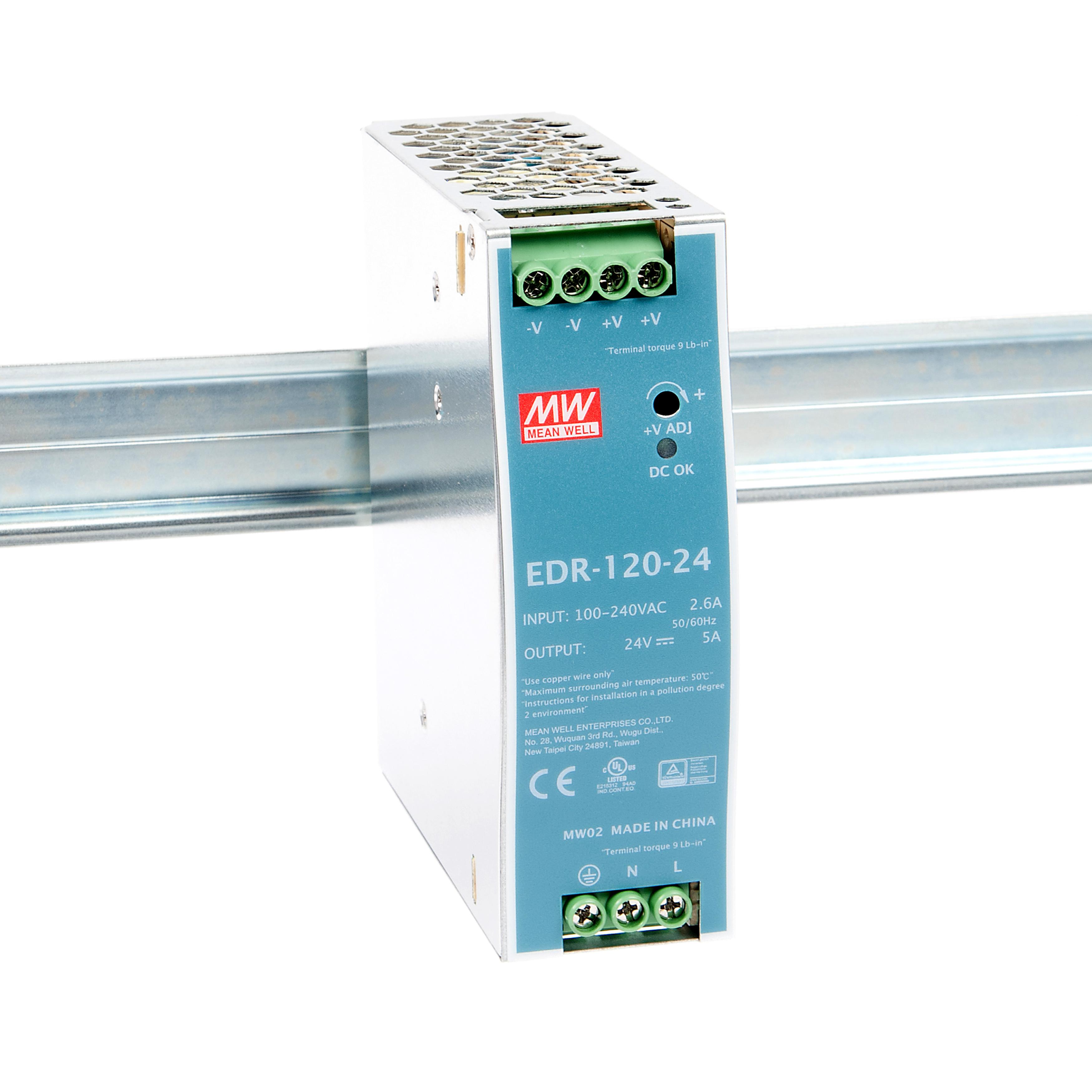

EDR 120 Watt Economical DIN Rail Power Supply 24V DC 5.0A
EDR 120 Watt Economical DIN Rail Power Supply 24V DC 5.0A
EDR 120 Watt Economical DIN Rail Power Supply 24V DC 5.0A
- Universal AC input / Full range
- Protections: Short circuit, overload, over voltage, and over temperature
- Cooling by free air convection
- Can be installed on TS-35/7.5 or TS-35/15 DIN rail
- High quality and economical
- Narrow profile to optimise space on the DIN rail
- LED ‘power on’ indicator
- DC output adjuster to increase the rated output voltage to +15%
- Wide ambient temperature range from –20°C to +60°C
- 100% full load burn-in test
- UL 508 (industrial control equipment) approved
- EN 61000-6-2 (EN 50082-2) industrial immunity level
- 2 years warranty
In order to retrieve a quote for this controller please follow one of the options below:
Details
A new high quality economical range of wide input voltage DIN rail mountable switched mode power supplies from 75W to 150W. These units have a special narrow profile to optimise space on the DIN rail and all types are ex stock.
They are available with a variety of output voltages and are approved to UL 508 (Industrial Control Equipment) with UL, CUL, TUV, CB, and CE pending. Units are fully protected against overload, short circuit, over voltage, and over temperature and have an LED indicator to signal ‘power on’.
Each unit has a DC output adjuster to increase the rated output voltage by 15% and all are subjected to a 100% full load burn-in test. EMC standards are to EN 61000-6-2 (EN 50082-2) and the power supplies within this range are designed for a wide ambient temperature range of between –20 °C and +60 °C. All models have a full 2 year warranty for complete peace of mind after purchase.
