Escalator Proximity Switch 30mm

SKU
ESC-PROX-30MM
Price on Application
Email

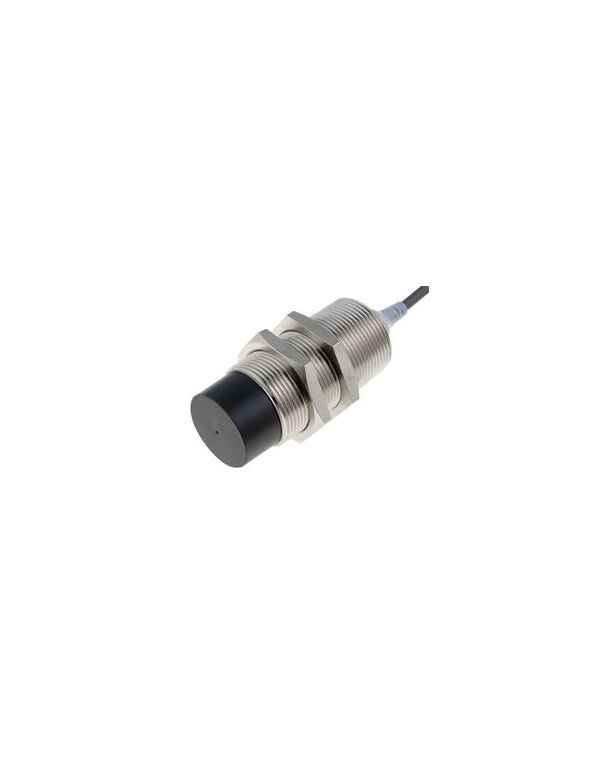

The E2A-M30LN30-WP-B1 2M from Omron Industrial Automation is an E2A series cylindrical proximity sensor. It has a safe mounting with greater sensing distance approximately 1.5 to 2 times larger than that of any conventional Omron sensor. This cylindrical proximity sensor uses high-frequency oscillations. It resists heat, chemicals and water better than rectangular sensors.

  • Standard, M30, long barrel, non-shielded sensor
  • Cylindrical, metric threaded, brass housing
  • Sensing distance is 30mm
  • Pre wired, PVC connection
  • DC power source, 3 wire, PNP open collector output
  • Operating mode is normally open (NO)
  • Power supply voltage range from 12VDC to 24VDC
  • Yellow LED for indication, 2m cable length
  • Insulation resistance is 50Mohm min at 500VDC, dielectric strength is 1000VAC at 50/60Hz
  • Approved by IEC60529, EN60947-5-2 standards, water resistance IP67
CylindricalProximitySensor-E2A (550.85 kB)
