All indicators available with 30mm or 50mm high digits. The two digit version of the TC3 50 is also available with similar general features as described for the TC3. This Indicator can be supplied to display one of the following display arrangements:

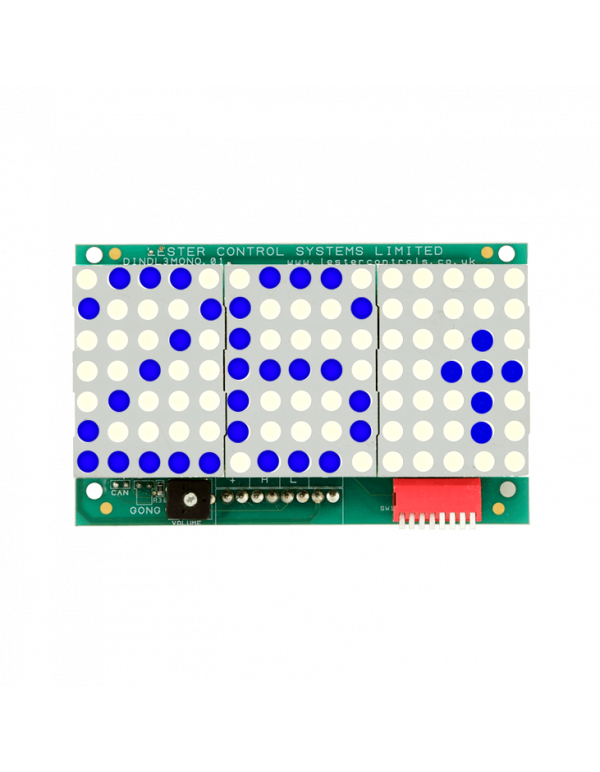

The highly successful TC3 (Tri colour 3 digit) range of indicators comprise of a Controller Interface Module (fitted in the lift controller) and a digital indicator fitted in the lift car and/ or on the landings.
With the advent of our new processor (ALMEGA and ALMEGA II) the interface module is not required, and hence makes the indicator more versatile and cheaper to use.
The indicator comes in three sizes. The only shortfall with the two digit display (TC3 50 2D) is that it can only display a maximum of two digits at any one time. Whether it be the floor display and direction arrows or just the floor display (if it is more than one digit) then the direction arrows have to be dropped. To compensate this, the display can scroll upwards in green and downwards in red showing the direction of travel without actually showing an arrow. The Hall Lantern facility is not compromised however.
All message displays are shown in red and alternate between the message and the lift position during operation. A binary encoder can be supplied should the lift exceed the 6 standard discrete inputs available.The interface is fully user programmable and can display all floor denominations.
The voice unit (VS2) will follow the display as long as the floor being displayed is in the Voice Library.Check with Lester Controls first if you have any queries.
