Non Serial TFT (LCD) 4.3 inch Indicator

SKU
TFT 43
£140.00

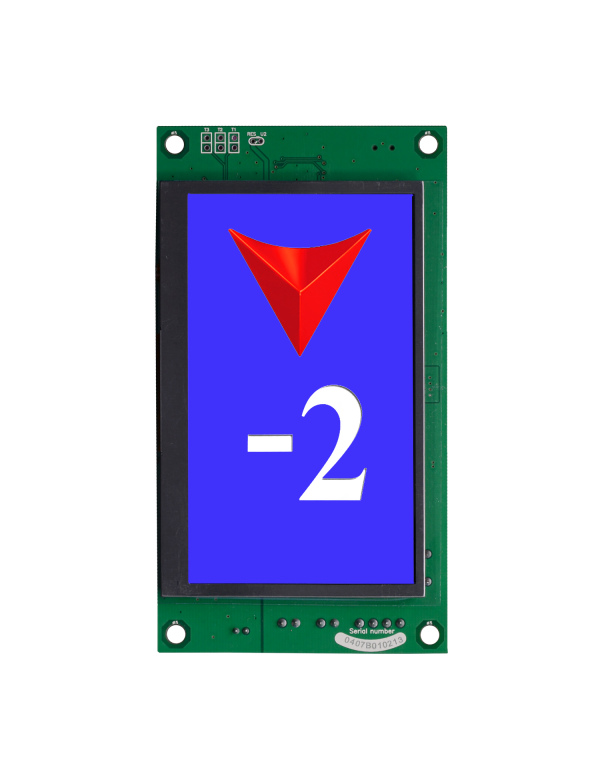

The TFT43 supersedes the TFT55 as our small TFT indicator product. Offering customisation on request and on-site programming, the TFT43 is at the forefront of lift indicator technology.

The new TFT43 has a full 256 colour TFT display with a 64K colour depth and an improved viewing angle. Facilities include multi-tone arrival gong, scrolling directional arrows and large hall lantern arrow. Available in vertical or horizontal mode.

  • On-site programmable
  • 256 Colours
  • High Resolution
  • Slim Construction
  • Up to 31 floors
  • 4 Wire Connection
  • Viewing angles
    - Left Angle (9 o’clock) 70 Degrees
    - Right Angle (3 o’clock) 70 Degrees
    - Upper Angle (12 o’clock) 50 Degrees
    - Lower Angle (6 o’clock) 70 degrees
  • Vertical or horizontal mode changeable via an on board Dip switch (no need for reprogramming)
  • 3D Scrolling Direction Arrows
  • Large Hall Lantern Arrow
  • Multi-Tone Arrival Gong
  • 256 Colours / 64K Colour Depth / 8 bits per pixel
  • Standard White Font on Blue Background
  • Customised Fonts, Font Colour, and Background Colour on request
  • Standard font - Times New Roman
  • Font height horizontal mode – 51mm
  • Font height vertical mode – 51mm
  • On Site Programmable
  • 4mm x 3mm x 15mm Studs
  • Adjustable Gong Output 8ohms up to 0.5w
  • Active viewing area 95.04 x 53.84mm
  • Resolution – 480*272
  • 4 x Eco modes with variable times that are changeable on site via the Almega II
    - Not enabled – full brightness continuous
    - Normal to low – full brightness to 30% brightness
    - Normal to off – full brightness to screen off
    - Normal to low to off – Full brightness to 30% brightness to screen off
  • Up to 31 standard messages
  • Compliant to EN 81-28 / EN 81-70 / EN 81-73
